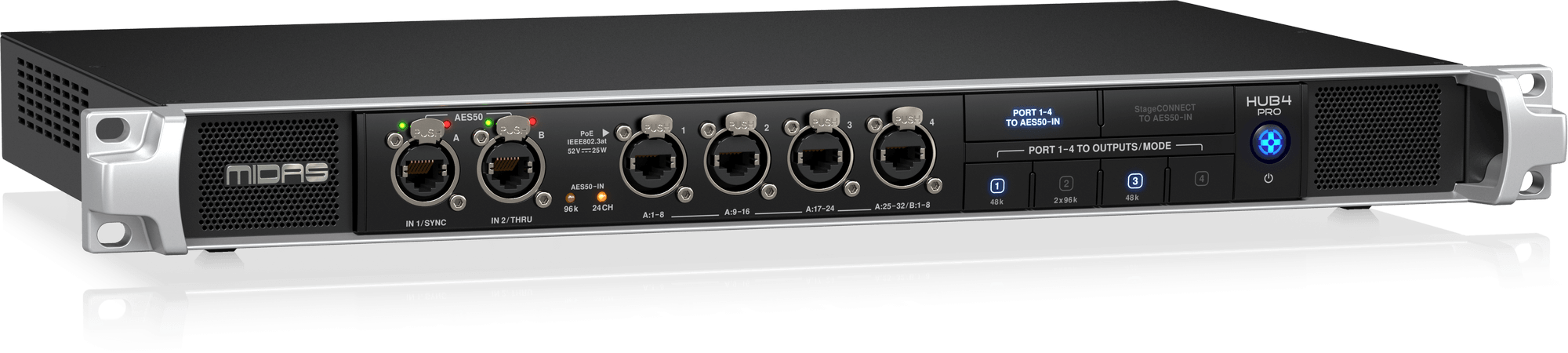

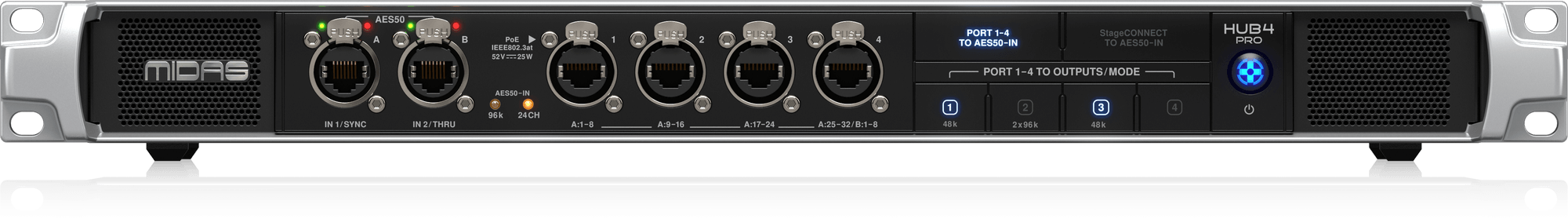

The Midas HUB4 PRO is the definitive stage rack multitool engineered for high-density professional personal monitoring. Designed to bridge the gap between monitor desks and modern IEM setups, it acts as a high-headroom power, data, and analog routing matrix in a compact, road-ready footprint.
Housed in a rugged 1U rackmount chassis featuring a universal auto-ranging switch-mode power supply for worldwide dependability on tour.
$710.00
The Midas HUB4 PRO is a current-production product from Midas Consoles, introduced in 2024 as part of the brand’s expanded personal monitoring ecosystem . It was unveiled alongside the V2.1 firmware update for the HD96-24 console, which added native HUB4 PRO connectivity . The HUB4 PRO remains in active production and is available through authorized dealers including Midas Console USA.
The Midas HUB4 PRO is a 96k monitor system hub designed to serve as the central nervous system of a professional personal monitoring setup. At its core, it is a PoE-equipped network hub that distributes audio and control data to Midas DP48 personal monitor mixers while collecting return audio from the stage .
Unlike traditional analog snake systems that require dozens of individual cables, the HUB4 PRO streamlines personal monitoring into a single CAT5e connection per device. It bridges the gap between front-of-house consoles, stage boxes, and personal mixers, creating a unified digital ecosystem that dramatically reduces setup time and eliminates cable clutter .
4 PoE Ports for DP48 Personal Mixers: The HUB4 PRO supplies Power over Ethernet to up to four Midas DP48 personal monitor mixers simultaneously. Each port delivers both audio and power over a single shielded CAT5e cable, eliminating the need for individual power supplies at each mixer position .
AES50 In and Thru with SRC: Industry-standard Neutrik etherCON AES50 ports provide bidirectional audio transport with Sample Rate Conversion. The HUB4 PRO handles 48 channels at 48 kHz or 2×24 channels at 96 kHz, ensuring compatibility with M32, HD96, and other AES50-equipped consoles .
16 Balanced Analog Outputs: Sixteen line-level outputs carry the eight stereo personal mixes from connected DP48 units directly to IEM transmitters in the side rack. This eliminates the need to run additional lines from personal mixers to transmitters, reducing setup time significantly .
StageConnect Interface: The StageConnect port outputs 32 channels of uncompressed 24-bit PCM audio at 44.1/48 kHz with sub-millisecond latency over a single XLR cable. This enables expansion with DN4816-I, DN4816-O, or DN4816-U I/O modules .
Cascading for Large Setups: Multiple HUB4 PRO units can be daisy-chained to support additional DP48 ports, scaling from small bands to full symphonic orchestra applications. DL8 or DL32 stage boxes can connect to the AES50 THRU port for additional I/O .
Console Integration and Control: The HUB4 PRO conveys control messages from M32 and Heritage D Series consoles to DP48 mixers, including channel assignments, names, and colors. Remote control can be forwarded from one DP48 to another for convenient stage-side assistance .
| Parameter | Specification |
|---|---|
| AES50 Ports | 2 × Neutrik etherCON |
| PoE Hub Ports | 4 × Neutrik etherCON (IEEE 802.3at) |
| StageCONNECT | 1 × 3-pin XLRM |
| Analog Outputs | 16 balanced (TRS/XLR combinations) |
| Output Impedance | 100 Ω |
| Maximum Output Level | +21.5 dBu |
| USB | Class-compliant USB 2.0 Type B |
| Sample Rates | 44.1/48 kHz, 96 kHz (2×24 channels) |
| Channel Count | 48 bidirectional @ 48 kHz |
| Latency (StageCONNECT) | Sub-millisecond |
| Rack Spaces | 1U |
| Power Supply | Auto-ranging universal switched-mode |
| Network Ports | Industry-standard RJ-45 AES50 |
| Max Cable Length | 80m (250 ft) shielded CAT5e recommended |
Specifications sourced from Midas official documentation and authorized dealer listings .
Choosing the HUB4 PRO means investing in a unified monitoring infrastructure that scales with your needs. Unlike competing personal monitoring systems that require proprietary hubs and mixers from a single brand, the HUB4 PRO operates within the open AES50 ecosystem, compatible with Midas M32, HD96, and Behringer X32 consoles .
The HUB4 PRO eliminates the “cable spaghetti” of analog monitoring setups. With PoE powering DP48 mixers and AES50 handling audio transport, a typical four-mixer system requires just five CAT5e cables instead of dozens of analog lines and power supplies. This translates directly into faster load-ins, fewer failure points, and cleaner stages .
Basic Setup: Place the HUB4 PRO in your stage rack. Connect the AES50 IN port to your console’s AES50 output using shielded CAT5e cable. Connect DP48 personal mixers to ports 1-4; they receive power and audio automatically. Connect IEM transmitters to the 16 analog outputs as needed .
Expanding with Stage Boxes: For additional I/O, connect Midas DL8 or DL32 stage boxes to the AES50 THRU port. The DL8 can even be powered directly from HUB4 PRO ports 1-4 via PoE, eliminating another power supply .
Daisy-Chaining Hubs: For larger monitoring systems, connect additional HUB4 PRO units via the AES50 ports. Each hub adds four more DP48 ports, supporting up to symphonic orchestra scale .
How to Buy: Purchase the Midas HUB4 PRO directly from Midas Console USA. We offer competitive pricing and fast shipping within the United States. Visit our product page to place your order with secure payment options.
Payment: We accept major credit cards, debit cards, and other secure payment methods through our encrypted checkout system.
Shipping: Fast, tracked shipping across the USA. Products are carefully packaged in protective materials to ensure safe delivery of your professional audio equipment.
Legal Considerations: The HUB4 PRO is covered by the comprehensive Midas warranty program. Purchasing from an unauthorized dealer may void warranty protection. Midas Console USA is an authorized source for genuine Midas products.
A: The HUB4 PRO is designed for Midas DP48 personal monitor mixers, supplying them with both PoE power and 48 channels of audio via AES50.
A: Yes. The HUB4 PRO uses AES50, which is compatible with Behringer X32 and Midas M32 series consoles.
A: One HUB4 PRO supports up to four DP48 mixers via PoE. Multiple hubs can be daisy-chained for larger systems.
A: StageConnect transmits 32 channels of 24-bit audio over a single XLR cable. Compatible devices include Midas DN4816-I, DN4816-O, and DN4816-U I/O modules.
A: Yes. At 96 kHz, the HUB4 PRO handles 2×24 channels (two streams of 24 channels) via AES50.
A: Shielded CAT5e cable runs up to 80 meters (250 feet) are recommended for reliable operation.
