The Midas DP48 is a dual 48-channel personal monitor mixer that puts complete, uncompromised control of the stage mix directly into the hands of the performer. Engineered for total integration with Midas M32, HD96, and Behringer X32 ecosystems, it delivers pristine, low-latency audio to ensure artists perform at their absolute peak.
Powered directly via an AES50 connection with PoE over a single Cat5e line when paired with the Midas HUB4 matrix switch.
$350.00
The Midas DP48 is a current-production personal monitoring solution from Midas Consoles, designed and engineered in the United Kingdom. It was introduced as a significant upgrade to the Behringer P16 personal mixer platform, offering expanded channel counts, onboard processing, and dual-user capability. The DP48 remains in active production and is available through authorized dealers including Midas Console USA.

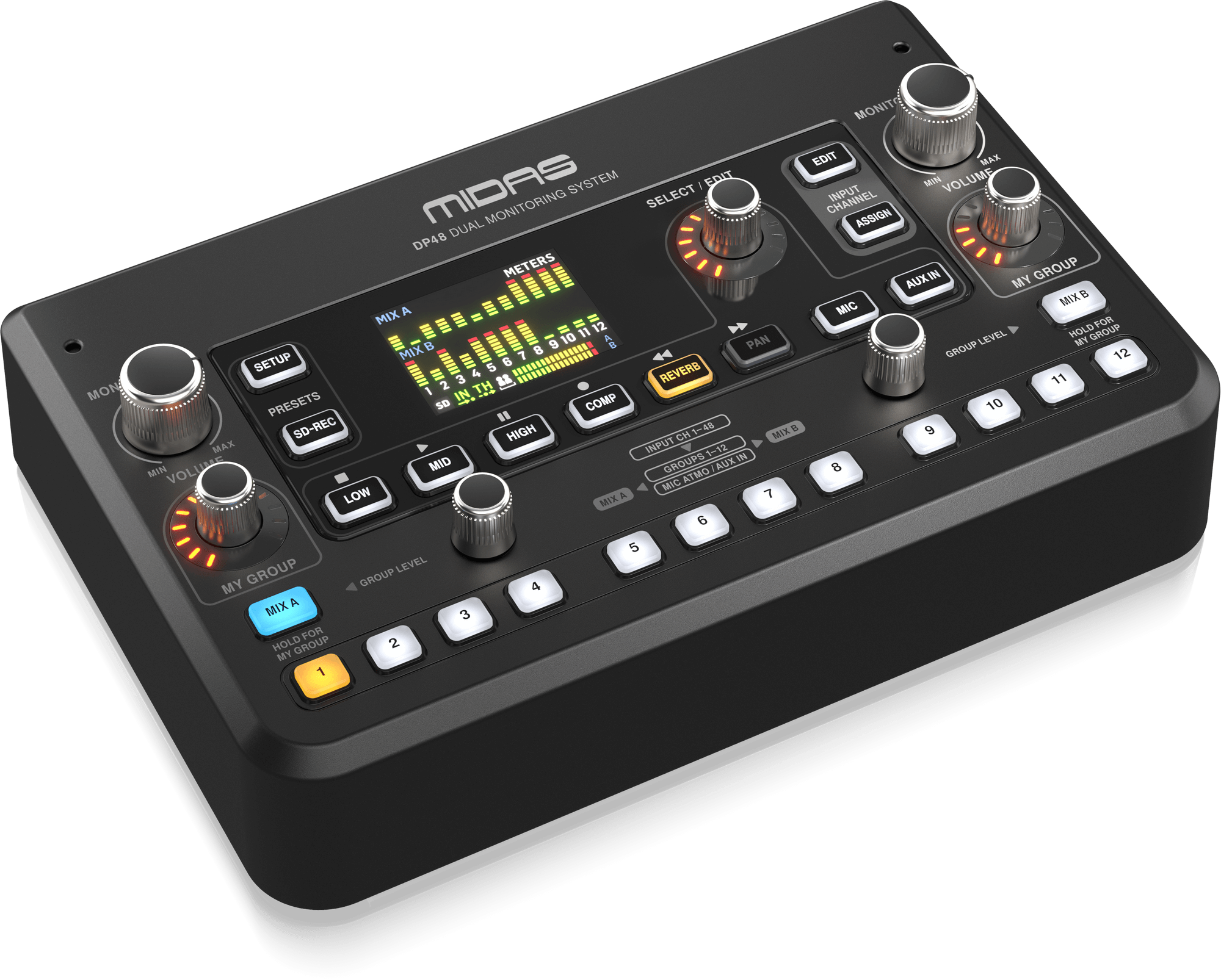

The Midas DP48 is a dual 48-channel personal monitor mixer that lets one or two performers take full control of their own in-ear monitor (IEM) mixes. It connects to any AES50-equipped device — including Midas M32, HD96, and Behringer X32 consoles — via a single CAT5e cable, delivering 48 individual input channels at 48 kHz/24-bit resolution .
Unlike traditional monitor systems where musicians must signal the engineer for adjustments, the DP48 puts volume, pan, solo, and mute control for up to 48 signals directly at the performer’s fingertips. This means the engineer can focus on the front-of-house mix while each musician dials in exactly what they need to perform at their best.
Dual 48-Channel Mixing with 12 Stereo Groups: All 48 channels can be freely assigned to 12 stereo groups, enabling rapid creation of personalized mixes. A vocalist might place their voice in Group 1 and the band in Groups 2-4, while a drummer can separate kick, snare, and hi-hat for surgical control .
Independent Dual Mixes for Two Performers: One DP48 can serve two musicians simultaneously, each with their own complete stereo mix. Both Mix A and Mix B outputs have dedicated controls for output volume, group level, and My Group level, along with independent EQ, reverb, and limiter settings .
Built-In SD Card Recorder: The DP48 records stereo rehearsals and performances to an SD card (FAT32 formatted). Recordings can be played back to Mix A or B, and a mix-minus function deducts the performer’s own signal for use as a backing track during practice .
Stereo Ambience Microphone: In-ear monitors can make performers feel isolated. The DP48’s built-in stereo ambience mic feeds stage sound into the mix, with an automatic ducking function that reduces mic level when the band is playing to keep the mix clean .
Studio-Quality Processing Per Group: Each of the 12 stereo groups features semi-parametric 3-band EQ, compression, and reverb send — all controllable from the top panel. The reverb adds spatial ambience independent of the main console .
Remote Powering and Daisy-Chaining: The DP48 can be powered directly via AES50 from a Midas HUB4 or HUB4 PRO with Power over Ethernet (PoE), eliminating the need for a separate power supply at each position. Without PoE, the included DC power supply allows daisy-chaining multiple DP48 units .
| Parameter | Specification |
|---|---|
| Input Channels | 48 channels, 12 stereo groups |

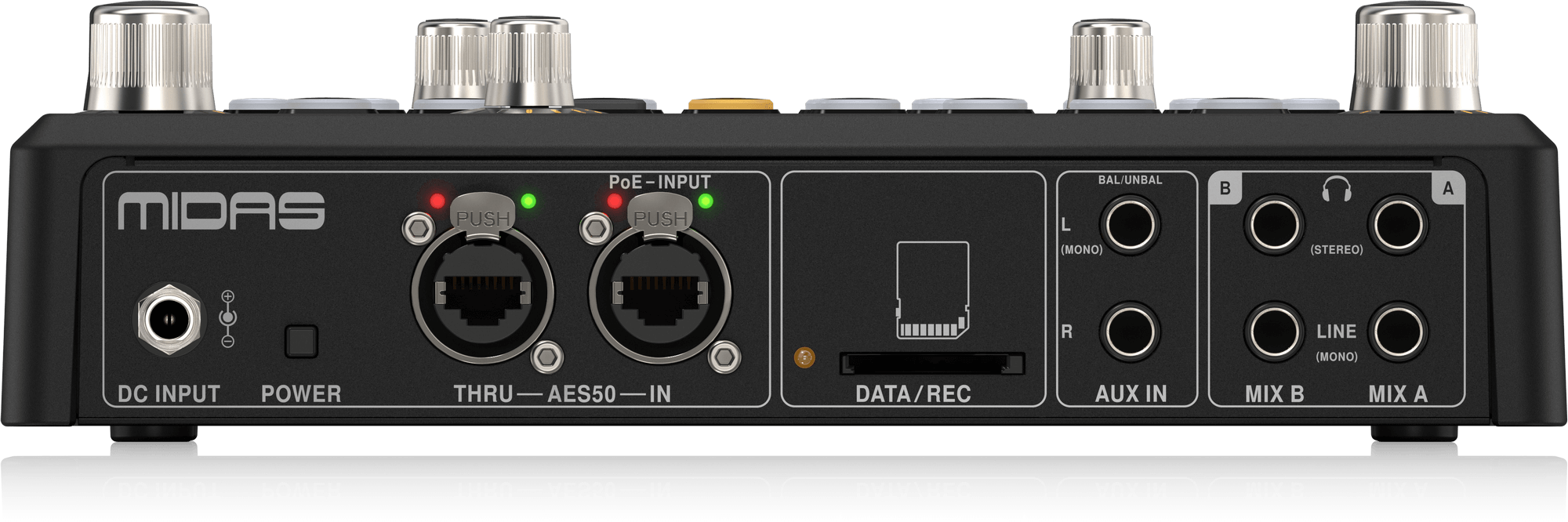

| AES50 Ports | 1 × In, 1 × Thru (Neutrik etherCON) |
| Analog Outputs | 2 × 1/4″ TRS (Mix A, Mix B) |
| Headphone Outputs | 2 × 1/4″ TRS (Mix A, Mix B) |
| Aux Input | 2 × 1/4″ TRS (stereo, balanced) |
| SD Card Slot | SD/SDHC (FAT32) |
| Display | 2.4″ color TFT |
| Sample Rate | 48 kHz / 24-bit |
| Power | PoE via AES50 or 24V DC adapter |
| Remote Cable Length | Up to 100m (328 ft) Cat5e |
| Dimensions (H×W×D) | 2.72 × 9.53 × 6.46″ |
| Weight | 2.9 lbs (1.3 kg) |
| Warranty | 10-Year Program (with registration) |
Specifications compiled from Midas official documentation and authorized dealer listings.
If you’re upgrading from a Behringer P16 system, the DP48 represents a substantial leap in capability. Users consistently report that the DP48 delivers noticeably better audio fidelity over AES50 compared to the P16, with drummers in particular benefiting from the expanded 48-channel count .
As one Sweetwater reviewer put it: “The audio fidelity that the DP48 offers over the AES50 protocol seems to be that much better… it’s a confidence booster for them to play having a great IEM mix” . Another long-term user noted: “If you have a M32 you should consider having this for the band” .
The DP48’s onboard reverb and compression — features the Behringer P16 lacks — allow performers to polish their monitor mix without consuming console resources. And with dual-mix capability, you can serve two musicians from one unit, often making the DP48 cost-competitive per performer against simpler alternatives .
Basic Setup: Connect the DP48’s AES50 IN port to your console or HUB4 using shielded CAT5e cable. The unit powers on automatically if receiving PoE from a HUB4; otherwise, connect the included DC power supply. Turn both MONITOR MIX knobs fully counter-clockwise before powering on to avoid sudden loud signals .
Assigning Groups: On the DP48, press SETUP and enable REMOTE. Then on your M32 or X32 console, navigate to the AES50 tab in the Library menu, select the DP48, and assign channels to groups. Channel names and colors are transmitted via AES50 for easy identification .
Recording to SD: Insert a FAT32-formatted SD card and press SD-REC to access 2-track recording and playback. The mix-minus function lets you record a backing track without your own signal .
How to Buy: Purchase the Midas DP48 directly from Midas Console USA. We offer competitive pricing and fast shipping within the United States. Visit our product page to place your order with secure payment options.
Payment: We accept major credit cards, debit cards, and other secure payment methods through our encrypted checkout system.
Shipping: Fast, tracked shipping across the USA. Products are carefully packaged in protective materials to ensure safe delivery of your professional audio equipment.
Legal Considerations: The DP48 is covered by the Midas 10-year warranty program when registered within 90 days of purchase . Purchasing from an unauthorized dealer may void warranty protection. Midas Console USA is an authorized source for genuine Midas products.
A: Up to two performers can use one DP48 simultaneously, each with their own independent stereo mix.
A: No. The DP48 connects directly to any AES50-equipped console. A HUB4 or HUB4 PRO is only needed for PoE remote powering and centralized stage rack routing.
A: Yes. The DP48 is compatible with any 44.1/48 kHz AES50 device, including Behringer X32 and Midas M32 consoles.
A: The DP48 requires a FAT32-formatted SD or SDHC card for recording and preset storage.
A: Yes. The DP48 includes an external DC power supply. It can also be powered via PoE from a HUB4.
A: Midas offers a 10-year warranty program when the product is registered within 90 days of purchase.
Users consistently praise the DP48’s audio quality and expandability. A worship pastor who upgraded from Behringer P16 units noted: “These have some great options the Behringers don’t including onboard reverb and compression… we spent about the same price per musician and have these mixers with more functionality” . A sound company owner simply said: “We bought two and now don’t know how we ever got along without these” . Another user highlighted the HUB4 synergy: “Used with the Hub4 it becomes even more powerful with ability to route signals to audio outputs on the Hub4 and back to the M32”.
