The Midas DN4888 is a high-performance StageConnect interface engineered to expand your FOH or monitor environment with 8 balanced analog inputs and 8 balanced outputs. It serves as the ultimate digital bridge for connecting wireless microphone systems, IEM transmitter racks, and premium outboard processing gear to your network.
Seamlessly unites cutting-edge digital bus topography with classic side-stage wireless infrastructure in a sleek, ultra-reliable format.
$310.00
The Midas DN4888 is a current-production StageConnect interface from Midas Consoles, designed and engineered in the United Kingdom. It was introduced to the market in October 2022 as part of the DN48XX Series, the first generation of I/O interfaces built on the StageConnect standard. The DN4888 remains in active production and is available through authorized dealers including Midas Console USA.
The Midas DN4888 is a bus-powered StageConnect interface that provides 8 balanced analog inputs and 8 balanced analog outputs to expand your mixing console’s I/O capacity . It serves as a breakout box for StageConnect systems, connecting seamlessly to Behringer WING consoles, Midas HUB4 hubs, and other StageConnect-enabled devices.
Unlike traditional analog snakes that require dozens of individual cables, the DN4888 transmits up to 32 channels of uncompressed 24-bit PCM audio bi-directionally over a single standard XLR or DMX cable at sub-millisecond latency . This dramatically reduces setup time and cable clutter on stage.
The DN4888 is ideal for connecting wireless microphone receivers, IEM transmitters, external effects processors, or any application requiring additional line-level analog I/O.

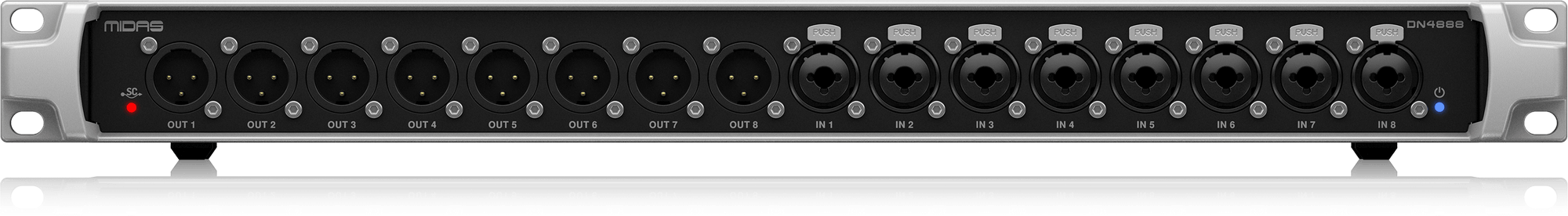

8×8 Balanced Analog I/O: The DN4888 provides 8 balanced XLR line inputs and 8 balanced XLR line outputs with 24-bit/44.1/48 kHz conversion, 114 dB A/D dynamic range, and +21 dBu maximum input/output levels . These connections are perfect for wireless systems, external effects inserts, or playback devices.
StageConnect 32-Channel Transmission: StageConnect delivers 32 channels of uncompressed 24-bit PCM audio at 44.1/48 kHz with <0.05 ms latency over standard 110-ohm DMX cable (max 40 meters) or shielded XLR microphone cable . The DN4888 uses a single XLR connection for all audio, control data, and remote power .
Dual Ultranet Outputs: Two RJ45 Ultranet ports transmit 16 independent channels of 24-bit digital audio via shielded CAT5e cable (max 75 meters) to Behringer P16 personal monitoring mixers, Turbosound iQ speakers, and other Ultranet-compatible devices . This bridges the StageConnect ecosystem with over 1 million existing Ultranet products .
Bus-Powered Operation: The DN4888 can be powered via its included 12V DC adapter or receive remote power through the StageConnect bus from a Master device. An SC Master provides 12 VDC / 18 W of remote power, allowing multiple devices to be phantom-powered from a single source . An external power supply enables standalone use and remote power output .
Cascade and Scale: The DN4888 can be daisy-chained with other DN48XX Series interfaces (DN4816-I, DN4816-O) to create custom I/O configurations. With a total bus bandwidth of 32 channels, you can achieve combinations ranging from 32 inputs to 16 in/16 out to 32 outputs using multiple units connected via simple XLR cables . Automatic Bus Configuration negotiates channel assignments when devices are connected .
| Parameter | Specification |
|---|---|
| Analog Inputs | 8 × XLR female, balanced |
| Input Impedance | 20 kΩ unbalanced / 40 kΩ balanced |
| Max Input Level | +21 dBu |
| Analog Outputs | 8 × XLR male, balanced |
| Output Impedance | 100 Ω unbalanced / 200 Ω balanced |
| Max Output Level | +21 dBu |
| A/D Conversion | 24-bit, 48/44.1 kHz, 114 dB |
| Dynamic Range | 110 dB DA / 106 dB AD |
| StageConnect Bus | 32 ch, 24-bit PCM audio |
| I/O Latency | < 0.05 ms |

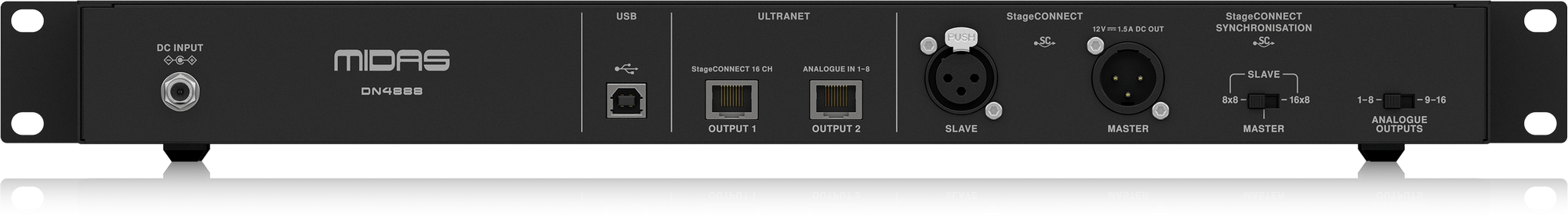

| StageConnect Connectors | 1 × XLR male (Master), 1 × XLR female (Slave) |
| Max SC Cable Length | 40 m (110Ω DMX) |
| Ultranet | 2 × RJ45 |
| Max Ultranet Cable | 75 m (shielded CAT5e) |
| USB | 1 × Type B (firmware updates) |
| Power Supply | 12 VDC / 2.5 A adapter included |
| Remote Power Output | 12 VDC / 1.5 A (18 W) |
| Power Consumption | 8.5 W |
| Rack Spaces | 1U |
| Dimensions (H×W×D) | 49 × 483 × 169 mm |
| Weight | 2.2 kg (4.9 lbs) |
Specifications compiled from official Midas documentation and authorized dealer listings .
If you’re building a StageConnect-based system with the Behringer WING or expanding a Midas HUB4 setup, the DN4888 delivers professional-grade I/O expansion with remarkable simplicity. A single XLR cable replaces eight analog input lines and eight output lines, cutting setup time and eliminating cable failures .
Users consistently praise the DN4888’s integration with the WING console. One Sweetwater reviewer noted: “Very convenient, 1 DMX cable runs my 8×8 slot rack as inserts with zero effort” . Another highlighted its utility for IEM systems: “I got mine for IEM use but the possibilities are large! You can’t go wrong!” .
Important compatibility note: The DN4888 provides line-level I/O only — it does not include microphone preamplifiers. For mic-level sources, you’ll need a separate preamp or a different Midas stage box such as the DL16 . This is a deliberate design choice that keeps the DN4888 compact and cost-effective for line-level applications.
Basic Setup: Mount the DN4888 in your effects or side rack (1U rack space). Connect its StageConnect Master XLR port to your WING, HUB4, or other StageConnect Master device using a 110-ohm DMX cable. The unit receives power from the bus or from its included DC adapter. The built-in Synchronization switch configures the unit for 8×8 or 16×8 Slave operation depending on your system needs .
Connecting Analog Gear: Use the 8 XLR inputs for wireless mic receivers, playback devices, or external preamps. Use the 8 XLR outputs for IEM transmitters, wireless systems, or effect sends. The line-level signal path ensures clean, transparent audio transfer .
Ultranet Integration: Connect Behringer P16 personal monitoring mixers or Turbosound iQ speakers directly to the dual Ultranet RJ45 ports using shielded CAT5e cable. The DN4888 translates between StageConnect and Ultranet protocols, enabling legacy monitoring gear to work within a modern StageConnect ecosystem .
Cascading Devices: Daisy-chain additional DN48XX interfaces via the StageConnect ports. The Automatic Bus Configuration will negotiate channel assignments, or you can configure routing manually via your console .
How to Buy: Purchase the Midas DN4888 directly from Midas Console USA. We offer competitive pricing and fast shipping within the United States. Visit our product page to place your order with secure payment options.
Payment: We accept major credit cards, debit cards, and other secure payment methods through our encrypted checkout system.
Shipping: Fast, tracked shipping across the USA. Products are carefully packaged in protective materials to ensure safe delivery of your professional audio equipment.
Legal Considerations: The DN4888 is covered by the comprehensive Midas warranty program. Purchasing from an unauthorized dealer may void warranty protection. Midas Console USA is an authorized source for genuine Midas products.
A: No. The DN4888 provides line-level I/O only — it does not include microphone preamplifiers . For mic-level sources, use a preamp or a DL16 stage box.
A: The DN4888 works with Behringer WING consoles, Midas HUB4 hubs, and any device featuring a StageConnect port. It also outputs to Ultranet devices like Behringer P16 personal mixers and Turbosound iQ speakers.
A: The DN4888 connects via Ultranet to M32/X32 consoles (which have Ultranet ports), but it is not an AES50 device. It provides Ultranet-to-analog conversion for outputs, or analog-to-Ultranet for inputs when used with compatible StageConnect masters.
A: Use 110-ohm DMX cable (max 40 m) for optimum performance and long runs. Standard shielded XLR microphone cable works for shorter distances, but DMX cable is recommended.
A: StageConnect carries 32 channels of uncompressed 24-bit PCM audio at 44.1/48 kHz with <0.05 ms latency over a single XLR connection.
A: Yes. The DN4888 includes a 12V DC power supply. It can also be powered remotely via the StageConnect bus when connected to a Master device.
Users consistently praise the DN4888 for its convenience and integration with the WING ecosystem. A Sweetwater reviewer using it for a 500-series rack noted: “Very convenient, 1 DMX cable runs my 8×8 slot rack as inserts with zero effort. Update your firmware and the unit is stable” . Another user highlighted its expandability: “Great addition to the Wing… uses DMX or standard XLR connections for 32×32 channels. I got mine for IEM use but the possibilities are large!” . A Thomann reviewer who uses it with analog outboard gear simply said: “Easy to install and operate. Top!”.
