The Midas DN4816-O is a high-density digital routing interface designed to inject 16 balanced line-level analog outputs directly into your StageConnect or ULTRANET network. Built for modern stage infrastructure, it provides a clean, localized termination point for extensive wireless IEM transmitter arrays, high-power side fills, and complex zone distribution.
Housed in a road-ready, space-saving 1U rackmount chassis that perfectly integrates legacy multi-destination line infrastructure with cutting-edge network topologies.
$295.00
The Midas DN4816-O is a current-production StageConnect interface from Midas Consoles, designed and engineered in the United Kingdom. It was introduced to the market in 2022 as part of the DN48XX Series, the first generation of I/O interfaces built on the StageConnect standard . The DN4816-O remains in active production and is available through authorized dealers including Midas Console USA.
The Midas DN4816-O is a bus-powered StageConnect interface that provides 16 balanced analog XLR outputs to expand your mixing console's output capacity . It serves as a breakout box for StageConnect systems, connecting seamlessly to Behringer WING consoles, Midas HUB4 hubs, and other StageConnect-enabled devices .
Unlike traditional analog snakes that require dozens of individual cables, the DN4816-O transmits up to 32 channels of uncompressed 24-bit PCM audio bi-directionally over a single standard XLR or DMX cable at sub-millisecond latency . This dramatically reduces setup time and cable clutter on stage.
The DN4816-O is ideal for connecting wireless IEM transmitters, side fills, talkback outputs, or any application requiring additional line-level analog outputs .
16 Balanced Analog XLR Outputs: The DN4816-O provides 16 balanced XLR line outputs with 24-bit/44.1-48 kHz conversion, 110 dB dynamic range, and +21 dBu maximum output level . These connections are perfect for wireless IEM transmitters, stage monitors, or playback systems.
StageConnect 32-Channel Transmission: StageConnect delivers 32 channels of uncompressed 24-bit PCM audio at 44.1/48 kHz with <0.05 ms latency over standard 110-ohm DMX cable (max 40 meters) or shielded XLR microphone cable . The DN4816-O uses a single XLR connection for all audio, control data, and remote power .
Dual Ultranet Ports: Two RJ45 Ultranet ports transmit 16 independent channels of 24-bit digital audio via shielded CAT5e cable (max 75 meters) to Behringer P16 personal monitoring mixers, Turbosound iQ speakers, and other Ultranet-compatible devices . This bridges the StageConnect ecosystem with over 1 million existing Ultranet products .
Bus-Powered Operation: The DN4816-O can be powered via its included 12V DC adapter or receive remote power through the StageConnect bus from a Master device. An SC Master provides 12 VDC / 18 W of remote power, allowing multiple devices to be phantom-powered from a single source . An external power supply enables standalone use and remote power output .
Cascade and Scale: The DN4816-O can be daisy-chained with another DN4816-O to create 32 total outputs, or with other DN48XX Series interfaces (DN4816-I, DN4888) for custom I/O configurations. Automatic Bus Configuration negotiates channel assignments when devices are connected .
| Parameter | Specification |
|---|---|

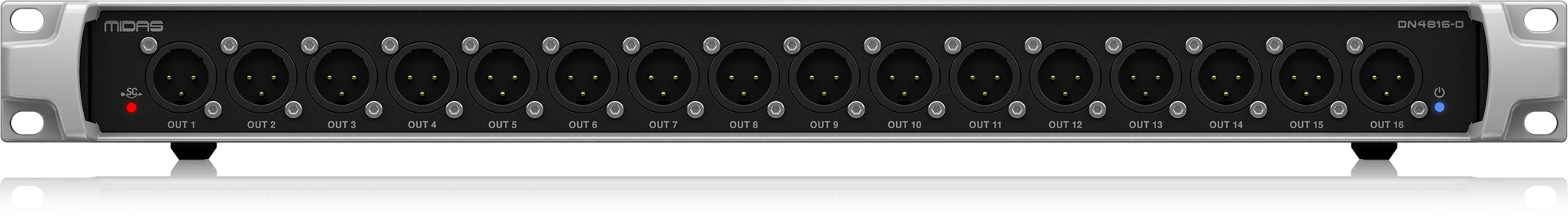

| Analog Outputs | 16 × XLR male, balanced |
| Output Impedance | 100 Ω unbalanced / 200 Ω balanced |
| Max Output Level | +21 dBu |
| D/A Conversion | 24-bit, 44.1/48 kHz |
| Dynamic Range | 110 dB |
| THD | 0.004% @ 1 kHz, 0 dBu output |
| Crosstalk | 110 dB @ 1 kHz |
| StageConnect Bus | 32 ch, 24-bit PCM audio |
| I/O Latency | < 0.05 ms |
| StageConnect Connectors | 1 × XLR (In/Out) |
| Max SC Cable Length | 40 m (110Ω DMX) |
| Ultranet Ports | 2 × RJ45 |
| Max Ultranet Cable | 75 m (shielded CAT5e) |
| USB | 1 × Type B (firmware updates) |
| Power Supply | 12 VDC / 1.5 A adapter included |
| Remote Power Output | 12 VDC / 18 W |
| Power Consumption | 9 W |
| Rack Spaces | 1U |
| Dimensions (H×W×D) | 48.3 × 17 × 4.8 cm |
| Weight | 2.2 kg (4.9 lbs) |
Specifications compiled from official Midas documentation and authorized dealer listings .
If you're building an IEM rig with the Behringer XAIR18, X32, or WING console, the DN4816-O delivers professional-grade output expansion with remarkable simplicity. A single XLR cable replaces 16 analog output lines, cutting setup time and eliminating cable failures .
Users consistently praise the DN4816-O's integration with XAIR and X32 systems. One Sweetwater reviewer noted: "This makes it much faster and easier to use our mixer (Midas MR18) at concerts and festivals. Eliminates the need for direct boxes and Y-cables. Worked flawlessly at my recent concert" . Another highlighted its utility for IEM racks: "A must if you run a iem rig with behringer xair18 or x32" . A third user simply said: "Compatible sur le port ULTRANET avec la X32 Compact & la XAIR-18… le plus important à mon sens c'est la possibilité de faire un rack retour INEAR le plus facilement du monde" .
Important compatibility note: The DN4816-O provides line-level outputs only — it does not include microphone preamplifiers. For mic-level sources, you'll need a separate preamp or a different Midas stage box such as the DL16 . This is a deliberate design choice that keeps the DN4816-O compact and cost-effective for output expansion applications.
Basic Setup: Mount the DN4816-O in your IEM or side rack (1U rack space). Connect its StageConnect port to your WING, HUB4, or other StageConnect Master device using a 110-ohm DMX cable. Alternatively, connect the Ultranet port to an XAIR18, X32, or MR18 console using shielded CAT5e cable . The unit receives power from the bus or from its included DC adapter. The built-in Synchronization switch configures the unit to accept sync from either Ultranet or StageConnect .
Connecting IEM Transmitters: Use the 16 XLR outputs for wireless IEM transmitters, stage monitors, or side fills. The line-level signal path ensures clean, transparent audio transfer for your monitoring system .
Ultranet Integration: Connect Behringer P16 personal monitoring mixers or Turbosound iQ speakers directly to the Ultranet RJ45 ports using shielded CAT5e cable. The DN4816-O translates between StageConnect and Ultranet protocols, enabling legacy monitoring gear to work within a modern StageConnect ecosystem .
Cascading Devices: Daisy-chain a second DN4816-O via the StageConnect ports to achieve 32 total outputs from a single StageConnect source. The Automatic Bus Configuration will negotiate channel assignments .
How to Buy: Purchase the Midas DN4816-O directly from Midas Console USA. We offer competitive pricing and fast shipping within the United States. Visit our product page to place your order with secure payment options.
Payment: We accept major credit cards, debit cards, and other secure payment methods through our encrypted checkout system.
Shipping: Fast, tracked shipping across the USA. Products are carefully packaged in protective materials to ensure safe delivery of your professional audio equipment.
Legal Considerations: The DN4816-O is covered by the comprehensive Midas warranty program. Purchasing from an unauthorized dealer may void warranty protection. Midas Console USA is an authorized source for genuine Midas products.
A: No. The DN4816-O provides line-level outputs only — it does not include microphone preamplifiers . For mic-level sources, use a preamp or a DL16 stage box.
A: The DN4816-O works with Behringer WING consoles, Midas HUB4 hubs, Midas MR18/M32, Behringer XAIR18/X32, and any device featuring a StageConnect or Ultranet port.
A: Yes. The DN4816-O connects via Ultranet to X32 and XAIR18 consoles, providing 16 additional line outputs.
A: Use 110-ohm DMX cable (max 40 m) for optimum performance and long runs. Standard shielded XLR microphone cable works for shorter distances, but DMX cable is recommended.
A: StageConnect carries 32 channels of uncompressed 24-bit PCM audio at 44.1/48 kHz with <0.05 ms latency over a single XLR connection.
A: Yes. The DN4816-O includes a 12V DC power supply. It can also be powered remotely via the StageConnect bus when connected to a Master device.
Users consistently praise the DN4816-O for its convenience and integration with XAIR and X32 ecosystems. A Sweetwater reviewer using it for concerts noted: "This makes it much faster and easier to use our mixer (Midas MR18) at concerts and festivals. Eliminates the need for direct boxes and Y-cables. Worked flawlessly at my recent concert" . Another user highlighted its splitter capability: "You can also ditch the ART S8 splitters if you get this. You can put 16 channels from your band through this on Ultranet, and give that to the FoH at the venue" . A worship leader shared: "At the church I started serving in March 2023, they only had 2 outputs from the sound booth to the platform… I tested the cable first, then the DN4816-O in the sound booth with the XR18…it worked! So now I have access to 18 outs on my platform!" . A Thomann reviewer simply said: "Compatible sur le port ULTRANET avec la X32 Compact & la XAIR-18… Un must si vous utilisez un rack IEM".
