The Midas DN4816-I is a high-density, bus-powered StageConnect interface engineered to add 16 balanced line-level inputs to your FOH or monitor environment. It acts as the ultimate low-latency digital breakout box for wireless mic receivers, multi-channel playback rigs, and secondary audio streams over a single cable.
$280.00
The Midas DN4816-I is a bus-powered StageConnect interface engineered to solve a fundamental challenge in modern live sound and studio production: how to efficiently integrate multiple analog sources into a digital console workflow without sacrificing signal integrity, rack space, or setup time.
This 16-input breakout box transforms your monitor or FOH console into a fully scalable I/O hub by providing sixteen balanced analog line inputs on industry-standard XLR combo jacks — designed specifically for connecting wireless microphone receivers, external preamps, playback devices, or any line-level audio source that needs to join your StageConnect ecosystem.
What separates the DN4816-I from conventional stage boxes is its single-cable StageConnect architecture. Rather than running 16 individual XLR cables to your console, you connect this unit using one standard XLR cable — the same interface used for microphone connections — and transmit up to 32 channels of uncompressed 24-bit PCM audio with less than 0.05 milliseconds of latency. The result is a dramatically simplified stage setup, reduced cable clutter, and faster load-in times for touring productions.
StageConnect represents a fundamental shift in how professional audio devices communicate. Developed by Music Tribe over a two-year period, this new interface standard allows any standard XLR or DMX cable to carry multi-channel digital audio, control data, and even remote power — all simultaneously and bi-directionally.
The technical foundation of StageConnect draws from established automotive audio bus technology, adapted specifically for professional audio applications. In practical terms, this means your existing cable inventory becomes exponentially more capable. A single XLR cable that once carried one analog microphone signal can now transport 32 channels of uncompressed digital audio between StageConnect devices.
The Midas DN48XX Series — including the DN4816-I — represents one of the first commercially available hardware implementations of this standard. While the ecosystem was introduced alongside the Behringer WING mixing console, the DN4816-I is fully compatible with any StageConnect-enabled device, including the Midas HUB4, Behringer SC-RE Range Extender, and future StageConnect implementations.
16 Balanced Analog Line Inputs

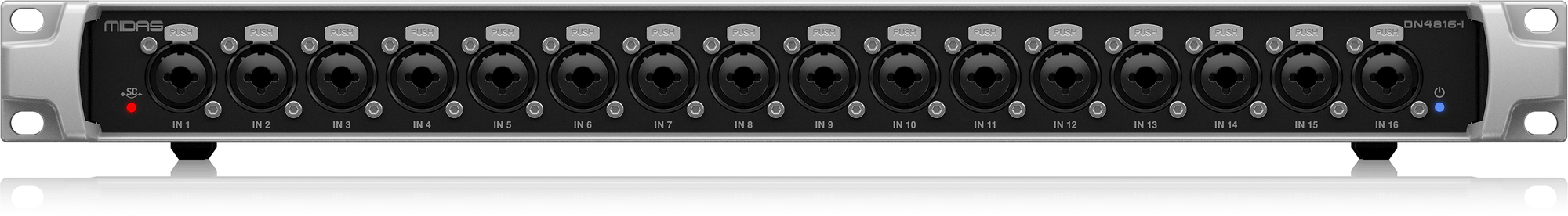

The DN4816-I provides sixteen XLR female combo inputs, each balanced and designed to accept line-level signals. These inputs feature a frequency response of 20 Hz to 20 kHz with ±0.2 dB tolerance, ensuring transparent capture of your source material. The input impedance of 40 kΩ balanced / 20 kΩ unbalanced ensures compatibility with a wide range of professional audio equipment.
Important note for microphone users: The DN4816-I inputs are line-level only — they do not contain microphone preamps. Any microphone signal must first pass through an external preamplifier or the microphone must be connected to a device with built-in preamps before reaching this unit. For wireless receiver outputs, DI box signals, or line-level playback devices, however, the DN4816-I is an ideal interface point.

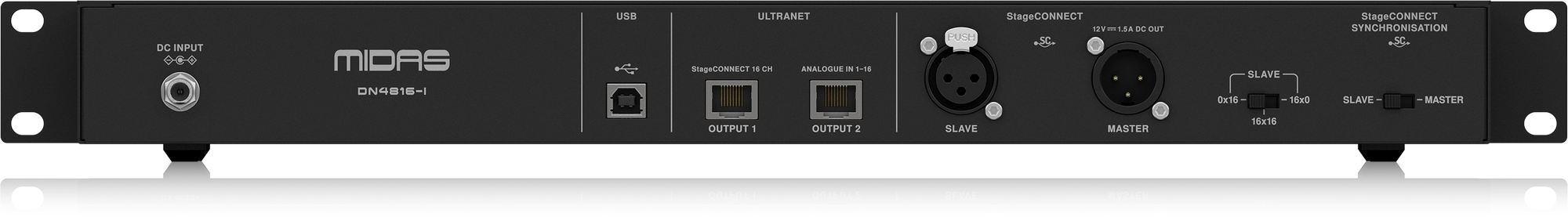

Beyond its StageConnect capability, the DN4816-I features two Ultranet outputs on RJ45 connectors. Ultranet is a well-established protocol that transmits up to 16 independent channels of 24-bit digital audio over standard Cat5e cable.
In the DN4816-I, the dual Ultranet outputs serve a specific and powerful function: the first output carries StageConnect channels 1-16, while the second output carries the 16 onboard analog input signals. This means you can simultaneously feed a Behringer P16 personal monitoring system with the same signals being transmitted via StageConnect — a particularly valuable capability for IEM (in-ear monitor) workflows where performers need access to the stage inputs you’ve connected to the DN4816-I.
The DN4816-I’s Ultranet outputs also provide compatibility with the broader ecosystem of Ultranet receivers, including Turbosound iQ speakers, AIR mixers, and the P16-M/P16-D personal monitoring systems. With over one million Ultranet products already deployed, this backward compatibility transforms the DN4816-I into a bridge between established infrastructure and next-generation StageConnect technology.
The DN4816-I operates as a bus-powered device — meaning it can draw its operating power directly from the StageConnect cable connected to a Master device. A StageConnect Master provides up to 18 W of remote power, and the DN4816-I’s power consumption of just 8.5 W means it can operate comfortably within this budget while potentially leaving headroom for additional devices in the chain.
For standalone operation or when additional power is required, Midas includes a 12 VDC / 2.5 A (30 W) power supply with the unit. When connected to DC power, the DN4816-I’s MASTER port can also output 18 W to downstream devices, allowing it to function as a power source within the StageConnect chain.
A rear-panel synchronization switch allows the DN4816-I to operate in either Master or Slave mode. In Slave mode, the unit connects to a StageConnect Master (such as a WING console or HUB4) and receives its configuration automatically. In Master mode, the DN4816-I can serve as the controlling device for a chain of StageConnect interfaces — a useful configuration for standalone digital snake applications where no console is present.
The Automatic Bus Configuration feature simplifies setup significantly. When devices are connected to a StageConnect chain, the Master device automatically detects connected interfaces and adjusts routing accordingly. For more complex planning, the StageConnect Calculator (SSC Tool) software allows you to virtually configure chains, calculate power budgets, verify cable lengths, and preview routing configurations before deploying hardware.
| Parameter | Specification |
|---|---|
| Analog Inputs | 16 × XLR female combo, balanced |
| Input Impedance | 40 kΩ balanced / 20 kΩ unbalanced |
| Max Input Level | +21 dBu |
| Frequency Response | 20 Hz – 20 kHz (±0.2 dB) |
| Dynamic Range | 106 dB |
| A/D Conversion | 24-bit, 44.1/48 kHz |
| StageConnect Bus | 32 channels, 24-bit PCM |
| StageConnect Latency | < 0.05 ms |
| StageConnect Connectors | 1 × XLR male (Master), 1 × XLR female (Slave) |
| Max Cable Length (110Ω DMX) | 40 m (130 ft) |
| Ultranet Outputs | 2 × RJ45 (Cat5e, max 75 m) |
| USB | Type B (firmware updates) |
| Power Input | 12 VDC / 2.5 A (adapter included) |
| Remote Power Output | 12 VDC / 1.5 A (18 W) via Master XLR |
| Power Consumption | 8.5 W |
| Dimensions | 483 × 49 × 169 mm (19″ 1U rack) |
| Weight | 2.2 kg (4.85 lbs) |
| Rack Mounting | 1U, 19-inch standard |
Specifications sourced from manufacturer documentation and authorized dealer listings.
The most common application for the DN4816-I is consolidating wireless microphone and IEM receiver outputs into a single StageConnect stream. In a typical touring setup, a rack containing 16 channels of wireless receivers can be connected to the DN4816-I, which then transmits all 16 channels to the console via a single XLR cable. This eliminates the need for a traditional analog snake and dramatically reduces setup complexity.
The DN4816-I can function as one half of a standalone digital snake system when paired with a DN4816-O (16-output StageConnect interface). In this configuration, the DN4816-I converts 16 analog inputs to StageConnect, and the DN4816-O converts StageConnect back to analog outputs — all without requiring a mixing console. This creates a 16-channel bidirectional digital snake over a single XLR cable, ideal for remote stage-to-FOH connections or complex installed systems.
Beyond wireless systems, the DN4816-I’s line inputs readily accept signals from playback devices (computers, media players), backing track systems, video streams, or any other line-level source. The 16-input capacity allows simultaneous connection of multiple auxiliary sources without occupying console inputs or requiring additional stage boxes.
Because the DN4816-I’s second Ultranet output carries the onboard analog input signals, it can directly feed a Behringer P16 personal monitoring system with the same sources connected to the StageConnect bus. This is particularly valuable for performers who need to hear their wireless microphones or backing tracks in their IEM mix before those signals are processed by the console.
Rack mounting hardware is integrated (1U chassis with standard 19″ mounting ears).
Step 1: Rack Mounting and Power
Secure the DN4816-I in a standard 1U rack space. Connect the included 12 VDC power supply if the unit will not be bus-powered, or leave disconnected if powering via StageConnect from a compatible Master device.
Step 2: Connect Analog Sources
Connect up to 16 line-level sources to the XLR combo inputs. Ensure sources are line-level — microphones require external preamplification before connecting to the DN4816-I.
Step 3: Configure Master/Slave Mode
Using the rear-panel Synchronization switch, select Slave mode (for connection to a WING, HUB4, or other StageConnect Master) or Master mode (for standalone chains or when the DN4816-I will control downstream devices).
Step 4: Connect StageConnect
Connect the StageConnect SLAVE XLR female port to your Master device using a 110Ω DMX cable for lengths up to 40 meters. For shorter runs, a standard balanced XLR microphone cable may suffice.
Step 5: Ultranet Connections (Optional)
Connect Cat5e cables from the Ultranet outputs to P16 monitoring systems, Turbosound iQ speakers, or other Ultranet receivers as needed.
Step 6: Verify Connection
The CONNECTION LED illuminates when a successful StageConnect network connection is established. The POWER LED indicates the unit is receiving power from either the DC adapter or StageConnect bus.
Important: Changes to the StageConnect chain (adding or removing devices) should not be performed during active audio transmission, as this will interrupt audio for approximately 2 seconds while the bus reconfigures.
Operating Environment: The DN4816-I is designed for use in tropical and moderate climates with ambient temperatures up to 45°C (113°F). Avoid installation in confined spaces that restrict ventilation, such as sealed rack drawers or bookcase-style enclosures.
Moisture and Heat: Do not expose the unit to rain, moisture, or sources of heat such as radiators, heat registers, or amplifiers that produce significant thermal output.
Electrical Safety: Do not remove the chassis cover. There are no user-serviceable components inside. All servicing should be referred to qualified personnel. The included 12 VDC power supply is designed for the DN4816-I; using an incompatible power source may damage the unit.
Storage: When not in use, store the DN4816-I in a dry, temperature-controlled environment. The rugged steel chassis provides protection during transport, but avoid dropping or subjecting the unit to excessive mechanical shock.
Shipping: Products shipped from Midas Console USA are packaged in reinforced cartons with protective foam inserts to ensure safe transit. Standard shipping timelines apply within the continental United States; expedited options are available at checkout.
Warranty: The DN4816-I is covered by a manufacturer’s warranty protecting against defects in materials and workmanship under normal use. Warranty terms and duration are specified in the documentation included with your purchase. For warranty claims, contact Midas Console USA customer support with your proof of purchase.
24/7 Customer Support
Our support team is available around the clock to assist with pre-sale questions, technical troubleshooting, and post-purchase inquiries. Whether you need help configuring your StageConnect chain or understanding compatibility with your existing console, we’re here to help.
Product Replacement
If your DN4816-I arrives damaged or develops a defect covered under warranty, we facilitate prompt replacement to minimize downtime. Contact us with details of the issue and we will guide you through the process.
Authenticity Guarantee
Every Midas DN4816-I sold through Midas Console USA is a genuine product sourced through authorized channels. We stand behind the authenticity of every item we sell.
Technical Consultation
Not sure whether the DN4816-I is the right interface for your setup? Our technical team can review your existing equipment, console model, and I/O requirements to recommend the optimal StageConnect configuration for your needs.
Complaint Handling
We take customer satisfaction seriously. If you experience any issue with your order or product, our dedicated resolution team will work to address your concern promptly and professionally.
Purchasing the DN4816-I through Midas Console USA is straightforward. Add the product to your cart, complete checkout using our secure payment system, and receive order confirmation with tracking information. For bulk orders, systems integration projects, or dealer inquiries, contact our sales team directly.
Payment Options: We accept major credit cards, debit cards, and other standard payment methods. All transactions are processed through secure, encrypted channels.
Legal Considerations: The DN4816-I is a professional audio device intended for use by qualified personnel. Ensure compliance with local regulations regarding electrical equipment and electromagnetic compatibility. StageConnect and Ultranet are proprietary technologies; usage is subject to the terms and conditions of the respective technology providers.
No. The DN4816-I provides line-level inputs only. Microphones must be connected to an external preamp before reaching the DN4816-I.
Yes. The DN4816-I is compatible with any StageConnect Master device, including the Midas HUB4 and Behringer SC-RE Range Extender. It can also operate in Master mode for standalone digital snake applications.
For runs up to 40 meters, use 110Ω DMX cable for optimal performance. For shorter distances, standard balanced XLR microphone cable can be used.
StageConnect supports 32 channels of uncompressed 24-bit PCM audio at 44.1/48 kHz with sub-0.05 ms latency.
Yes. The DN48XX Series devices are designed for daisy-chaining. A StageConnect chain supports one Master and up to 11 Slave devices.
Yes. The Ultranet outputs allow direct connection to P16-M and P16-D personal monitoring systems, as well as other Ultranet-compatible devices.
Ultranet via Cat5e cable supports runs up to 75 meters.
The rear-panel USB Type B port allows connection to a computer for firmware updates.
Yes. The DN4816-I requires only 8.5 W of power and can be bus-powered when connected to a StageConnect Master providing 18 W of remote power.
Compatibility with X32/M32 depends on the console’s Ultranet capabilities. The DN4816-I connects via Ultranet to these consoles, providing 16 analog inputs through the Ultranet port. For full StageConnect functionality, a StageConnect Master device (such as WING or HUB4) is required.
