The Midas DL152 is a high-density, professional fixed-configuration digital stage box engineered to handle extensive output distribution in live sound systems. Built explicitly to streamline complex stage configurations, it packs a high-volume line matrix into a space-saving footprint.
Housed in a road-ready 2U steel rackmount chassis built for touring longevity and the rigid deployment demands of professional sound crews.
$1,850.00
The Midas DL152 was introduced at the 2014 NAMM Show as part of the DL150 Series of fixed-format I/O stage boxes. Designed and engineered in England, it remains in active production and is available through authorized dealers including Midas Console USA.
The Midas DL152 is a 2U 19" fixed-configuration rack I/O unit with 24 line-level outputs. It delivers legendary Midas sound quality in a cost-effective chassis that utilizes time-tested and road-proven technologies. Unlike traditional analog snakes requiring dozens of cables, the DL152 transmits up to 48 bidirectional audio channels over AES50 SuperMAC networking at distances up to 100 meters. Dual AES50 ports provide cable redundancy, ensuring your show continues even if a cable fails.
24 Active-Balanced Line Outputs: The DL152 provides 24 servo-balanced low-impedance line outputs with high output current capability for driving long cable runs. Maximum output level is +21 dBu into 600Ω with dynamic range exceeding 108 dB. The outputs feature an automatic mute facility if the audio signal path is muted by the console operator, with individual LED indicators per connector.
Dual Redundant AES50 Network Ports: Two Neutrik etherCON AES50 ports provide dual-cable redundancy for mission-critical live applications. Klark Teknik SuperMAC technology delivers high channel counts, ultra-low deterministic latency, phase-aligned clock distribution, and comprehensive error detection.
96 kHz or 48 kHz Operation: The DL152 supports multiple sample rates for AES50 connections — 96 kHz for Midas PRO Series and 48 kHz for Midas M32 Series consoles.

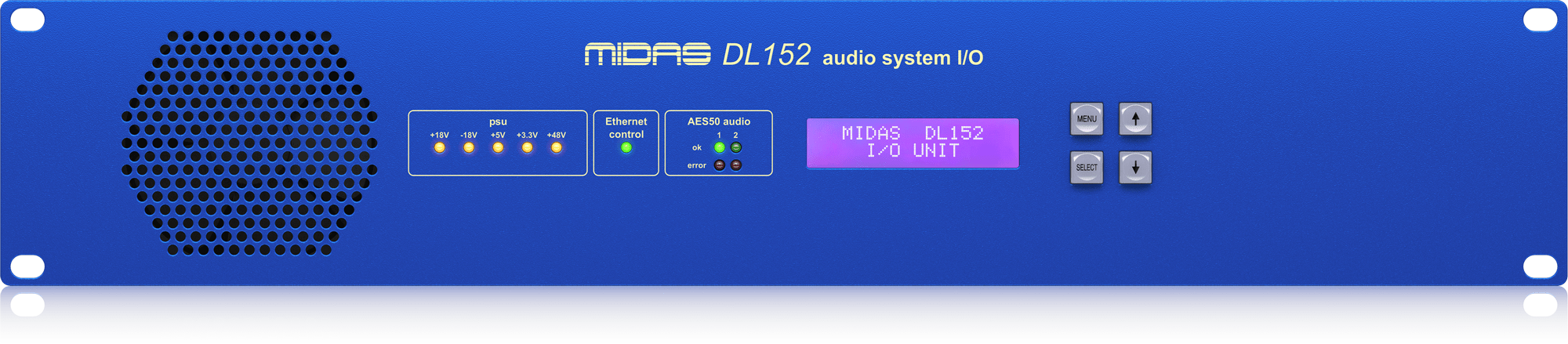

Remote Console or Front Panel Control: All configuration settings can be set remotely from the mixing console or via the front panel LCD with intuitive menu navigation. LED status indicators show PSU output rail condition and AES50/Ethernet network activity.
Rugged Tour-Ready Design: Featuring a rugged steel 2U rackmount enclosure, the DL152 is designed for the rigours of live concert touring. Premium Neutrik connectors ensure reliable audio and network connections night after night.
| Parameter | Specification |
|---|---|
| Analog Outputs | 24 × XLR male, balanced |
| Output Impedance | 50 Ω source |
| Maximum Output Level | +21 dBu (into 600Ω) |
| Dynamic Range | >108 dB unweighted (22 Hz–22 kHz) |
| Frequency Response | ±0.5 dB (20 Hz–20 kHz) |
| Distortion (THD) | <0.01% @ 1 kHz, 0 dB |
| Crosstalk | <−90 dB @ 1 kHz |
| AES50 Ports | 2 × Neutrik etherCON, dual redundancy |
| Ethernet Control | 1 × RJ45 |
| Diagnostic Port | 1 × 9-pin D-sub |
| Sample Rates | 48 kHz / 96 kHz |
| Remote Cable Length | Up to 100 m via CAT5 |
| Power Supply | Auto-ranging 100–240 VAC, 50–60 Hz |
| Power Consumption | <150 W |
| Rack Spaces | 2U |
| Dimensions (H×W×D) | 88.1 × 482.6 × 380 mm |
| Net Weight | 5 kg (11 lbs) |
| Operating Temperature | +5°C to +45°C |
| Warranty | 3-Year Program |
Specifications sourced from official Midas DL152 datasheet and documentation .
If you need maximum output count in a single rack unit, the DL152 delivers 24 line outputs — ideal for IEM transmitter racks, stage monitor systems, or installations requiring extensive analog returns. The DL152 is specifically designed as the ideal partner to PRO1 and PRO2 digital consoles, significantly increasing network capacity and analog output count. Its dual redundant AES50 ports provide failover protection that touring professionals demand.
Basic Setup: Mount the DL152 in your stage rack (2U rack space). Connect your output destinations to the 24 XLR outputs. Run a shielded CAT5e cable from one of the AES50 ports to your Midas console.
Remote Configuration: All settings are remotely controllable from the console. Use the front panel LCD and navigation buttons for local configuration when needed.
Redundant Networking: For dual redundancy, connect a second AES50 cable between the DL152 and console. If the primary cable fails, the system automatically switches to the redundant path.
How to Buy: Purchase the Midas DL152 directly from Midas Console USA. We offer competitive pricing and fast shipping within the United States.
Payment: We accept major credit cards, debit cards, and other secure payment methods through our encrypted checkout system.
Shipping: Fast, tracked shipping across the USA. Products are carefully packaged in protective materials.
Legal Considerations: The DL152 is covered by the Midas 3-Year Warranty Program. Purchasing from an unauthorized dealer may void warranty protection.
A: The DL152 works with any AES50-equipped console, including Midas M32 Series, PRO Series, and Behringer X32. It operates at 48 kHz for M32 Series and 96 kHz for PRO Series.
A: The DL152 provides 24 servo-balanced line outputs on XLR connectors.
A: No. The DL152 is an output-only stage box with 24 line-level outputs and no microphone preamplifiers.
A: The DL252 provides 16 mic inputs and 48 outputs with additional features including MIDI I/O and triple AES50 ports. The DL152 is a focused 24-output solution.
A: Up to 100 meters (328 feet) using shielded CAT5e cable with etherCON connectors.
A: Yes. Two AES50 ports provide dual-cable redundancy for fail-safe operation.
A: The DL152 is a 2U 19" rackmount unit, measuring 88.1 × 482.6 × 380 mm and weighing 5 kg.
