The Midas DL152 is a professional 2U 19″ fixed-configuration rack I/O unit delivering legendary Midas sound quality over advanced digital networks. It replaces heavy analog snakes by running high-density stage return routing over a single, lightweight line.
$2,900.00
The Midas DL151 was introduced at the 2014 NAMM Show as part of the DL150 Series of fixed-format I/O stage boxes. Designed and engineered in England, it remains in active production and is available through authorized dealers including Midas Console USA.
The Midas DL151 is a 2U 19" fixed-configuration rack I/O unit with 24 mic/line level inputs. It delivers legendary Midas sound quality in a cost-effective chassis that utilizes time-tested and road-proven technologies. Unlike traditional analog snakes requiring dozens of cables, the DL151 transmits up to 48 bidirectional audio channels over AES50 SuperMAC networking at distances up to 100 meters. Dual AES50 ports provide cable redundancy, ensuring your show continues even if a cable fails.
24 Award-Winning Midas Microphone Preamplifiers: The DL151 features 24 remote-controllable Midas microphone preamplifiers with 2.5 dB analog gain steps and switchable +48V phantom power per channel. More than 40 years of design experience paired with premium-grade components delivers acclaimed warmth and depth, capturing precise sound images with low noise and high common-mode rejection. Mic EIN is -126 dBu, and CMRR exceeds 90 dB at 40 dB gain.
Dual Redundant AES50 Network Ports: Two Neutrik etherCON AES50 ports provide dual-cable redundancy for mission-critical live applications. Klark Teknik SuperMAC technology delivers high channel counts, ultra-low deterministic latency, phase-aligned clock distribution, and comprehensive error detection.
96 kHz or 48 kHz Operation: The DL151 supports multiple sample rates for AES50 connections — 96 kHz for Midas PRO Series and 48 kHz for Midas M32 Series consoles.

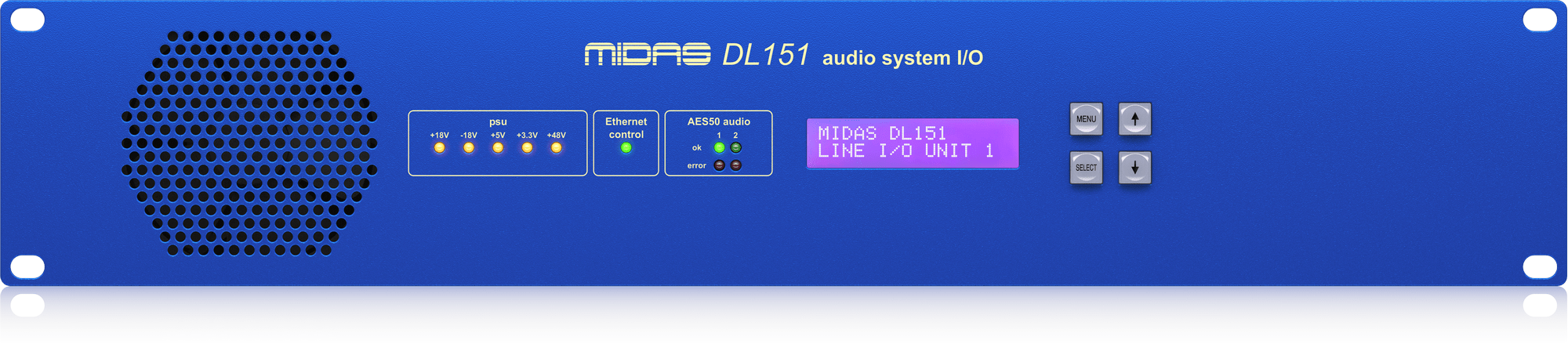

Remote Console or Front Panel Control: All configuration settings can be set remotely from the mixing console or via the front panel LCD with intuitive menu navigation. LED status indicators show PSU output rail condition, AES50/Ethernet network activity, and phantom power status per input channel.
Rugged Tour-Ready Design: Featuring a rugged steel 2U rackmount enclosure, the DL151 is designed for the rigours of live concert touring. Premium Neutrik connectors ensure reliable audio and network connections night after night.
| Parameter | Specification |
|---|---|
| Microphone Inputs | 24 × XLR female, balanced |
| Gain Steps | 2.5 dB analog steps |
| Phantom Power | +48V, switchable per channel, LED indicated |
| AES50 Ports | 2 × Neutrik etherCON, dual redundancy |
| Ethernet Control | 1 × RJ45 |
| Sample Rates | 48 kHz / 96 kHz |
| Dynamic Range | >107 dB unweighted |
| CMRR (40 dB Gain) | >90 dB |
| Mic EIN | -126 dBu |
| Frequency Response | ±0.5 dB (20 Hz – 20 kHz) |
| THD | <0.01% @ 1 kHz, 0 dB |
| Crosstalk | <−90 dB @ 1 kHz |
| Remote Cable Length | Up to 100 m via CAT5 |
| Power Supply | Auto-ranging 100–240 VAC, 50–60 Hz |
| Power Consumption | <150 W |
| Rack Spaces | 2U |
| Dimensions (H×W×D) | 88 × 483 × 416 mm (3.5 × 19.0 × 16.4") |
| Net Weight | 6.9 kg (15.2 lbs) |
| Operating Temperature | +5°C to +45°C |
| Warranty | 3-Year Program |
Specifications sourced from official Midas DL151 documentation and authorized dealer listings.
If you need maximum input count in a single rack unit, the DL151 delivers 24 Midas PRO preamps — ideal for festival stages, large ensembles, and complex touring productions. The DL151 is specifically designed as the ideal partner to PRO1 and PRO2 digital consoles, significantly increasing network capacity and analog input count. Its dual redundant AES50 ports provide failover protection that touring professionals demand.
Basic Setup: Mount the DL151 in your stage rack (2U rack space). Connect your mic sources to the 24 XLR inputs. Run a shielded CAT5e cable from one of the AES50 ports to your Midas console.
Remote Configuration: All settings — including input gain and phantom power — are remotely controllable from the console. Use the front panel LCD and navigation buttons for local configuration when needed.
Redundant Networking: For dual redundancy, connect a second AES50 cable between the DL151 and console. If the primary cable fails, the system automatically switches to the redundant path.
How to Buy: Purchase the Midas DL151 directly from Midas Console USA. We offer competitive pricing and fast shipping within the United States.
Payment: We accept major credit cards, debit cards, and other secure payment methods through our encrypted checkout system.
Shipping: Fast, tracked shipping across the USA. Products are carefully packaged in protective materials.
Legal Considerations: The DL151 is covered by the Midas 3-Year Warranty Program . Purchasing from an unauthorized dealer may void warranty protection.
A: The DL151 works with any AES50-equipped console, including Midas M32 Series, PRO Series, and Behringer X32. It operates at 48 kHz for M32 Series and 96 kHz for PRO Series.
A: The DL151 provides 24 remote-controllable Midas microphone preamplifiers on XLR connectors.
A: No. The DL151 is an input-only stage box with 24 mic/line inputs and no analog outputs.
A: The DL151 has 24 inputs and no outputs, while the DL153 has 16 inputs and 8 outputs. The DL151 is ideal for high-channel-count input needs.
A: Up to 100 meters (328 feet) using shielded CAT5e cable with etherCON connectors.
A: Yes. Two AES50 ports provide dual-cable redundancy for fail-safe operation.
A: The DL151 is a 2U 19" rackmount unit, measuring 88 × 483 × 416 mm and weighing 6.9 kg.
