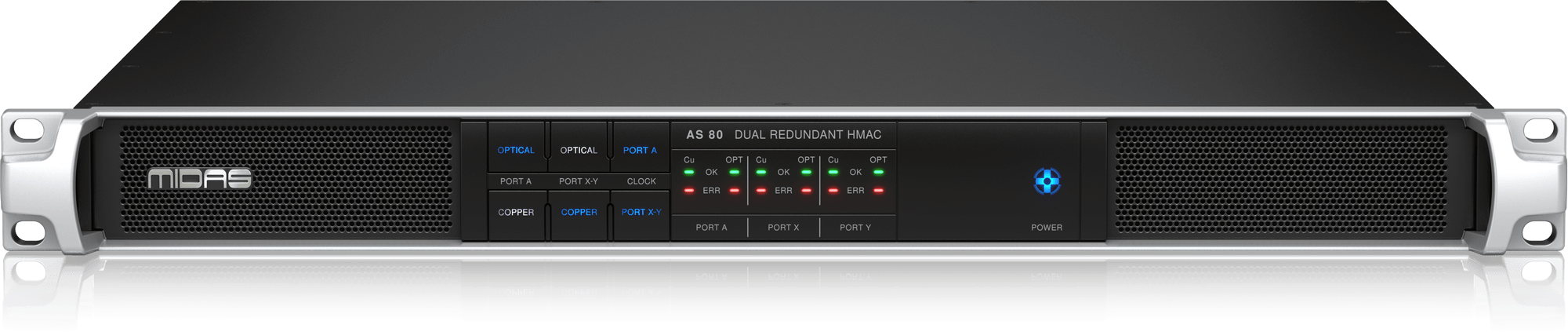

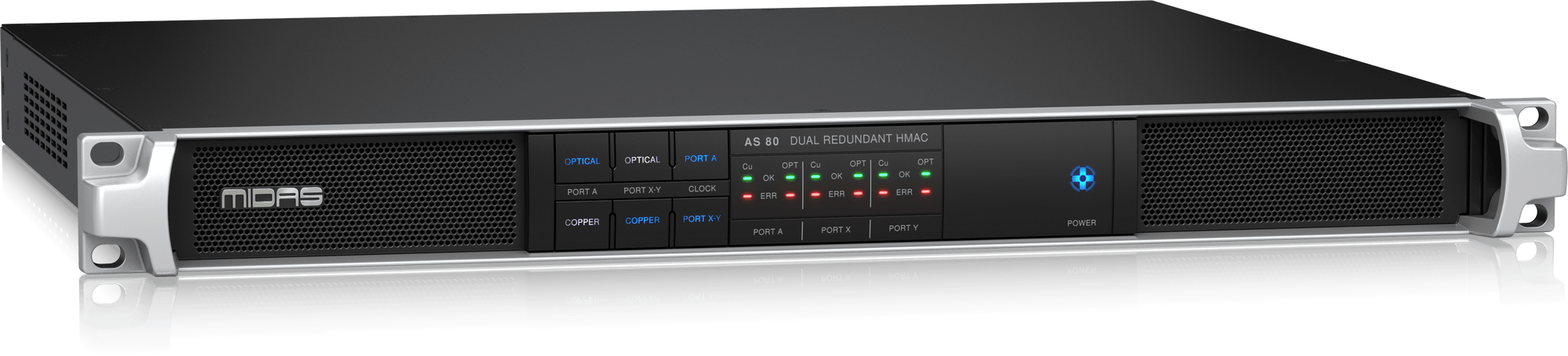

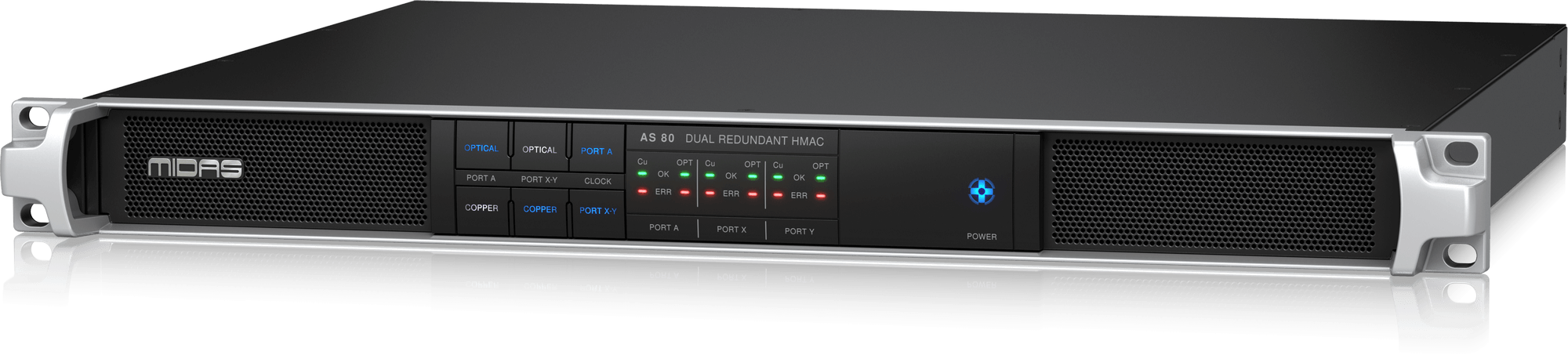

The Midas AS80 is a professional 1U 19″ network interface designed to seamlessly convert a single high-bitrate HyperMac connection into two redundant 1 GBit HMAC lines. Engineered for elite digital backbones, it delivers instantaneous audio switching and ironclad snake redundancy for high-profile touring configurations.
$2,900.00
The Midas AS80 has been in production since approximately 2016 and remains an active product in the Midas lineup. Designed for professional audio applications, it is manufactured in China and available through authorized dealers including Midas Console USA.
The Midas AS80 is a 1U rackmount HMAC to dual HMAC converter that seamlessly transforms a single high-bitrate HyperMac connection into two redundant 1 GBit HMAC lines, and vice versa. It delivers ultra-fast audio switching and supports up to 192 bidirectional channels at 96 kHz, making it an essential component for large-format live sound and touring systems.
Unlike standard converters that offer limited redundancy, the AS80 provides full cable redundancy from console to stage box, significantly reducing the risk of signal loss during critical performances. The unit is specifically designed to work with the flagship Midas HD96 console, allowing both console Snake ports to be made redundant and unlocking greater channel capacity.
Single HyperMac to Dual Redundant HMAC Conversion: The AS80 converts one HyperMac source into two independent, redundant 1 GBit HMAC outputs. This architecture ensures that if any cable or connection fails, audio continues seamlessly via the redundant path.
192 Bidirectional Channels at 96 kHz: The AS80 handles up to 192 channels of bidirectional audio at 96 kHz sample rate, suitable for the most demanding touring and installation applications.
FPGA-Based Failover Switching: Utilizing advanced FPGA-based switching technology, the AS80 ensures dependable HMAC failover to a redundant connection when needed. This hardware-based switching maintains audio integrity without the latency or dropouts that software-based systems might introduce.
Dual Redundant Power Supplies: The AS80 includes dual redundant auto-ranging universal switch-mode power supplies with independent IEC power inlets, providing seamless switchover in the unlikely event of a power supply failure.

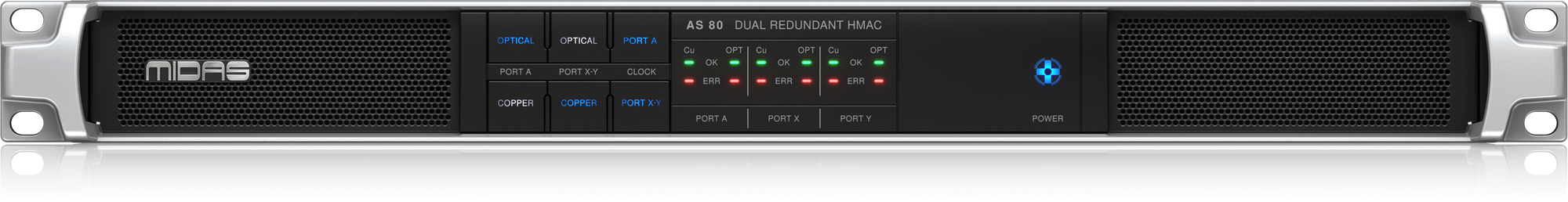

Real-Time Cable Status Monitoring: Connection redundancy status is available directly from the connected console, indicating cable state in real time. Front-panel LEDs provide instant visibility into port connection status for copper and optical connections.
| Parameter | Specification |
|---|---|
| Function | HMAC to Dual HMAC Converter |
| Channels | 192 bidirectional at 96 kHz |

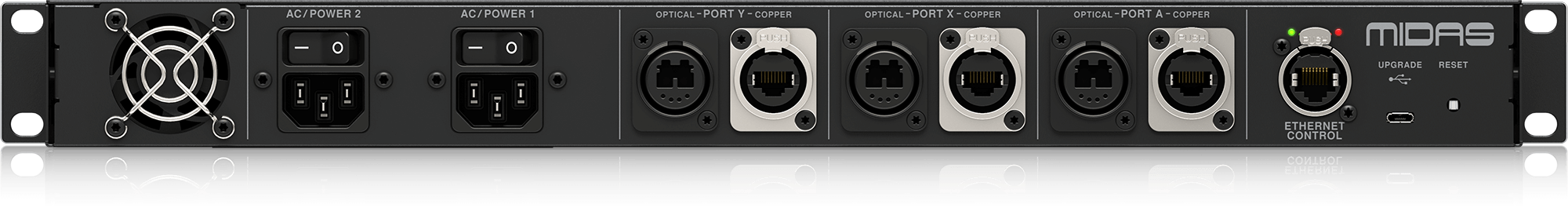

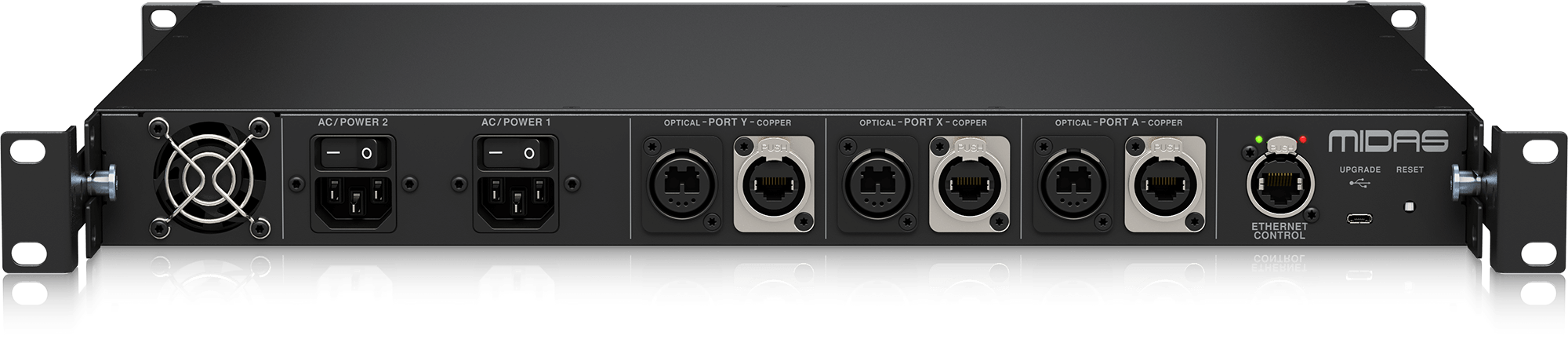

| Snake Ports (Copper) | 3 × RJ-45 HyperMAC |
| Snake Ports (Optical) | 3 × optical multi-mode (Neutrik opticalCON DUO) |
| Ethernet Control | 1 × RJ45 |
| Upgrade Port | 1 × Micro USB |
| Power Inlets | 2 × 3-pin IEC switched connectors |
| Power Consumption | 25 W × 2 |
| Voltage | 100–240 VAC ±10% |
| Rack Spaces | 1U |
| Dimensions (H×W×D) | 44 × 483 × 436 mm (1.7 × 19 × 17.2") |
| Net Weight | 5.1 kg (11.2 lbs) |
| Shipping Weight | 7.1 kg (15.6 lbs) |
| Operating Temperature | 5°C to 45°C (41°F to 113°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Included Accessories | Quick Start Guide, 2 Power Cables, Mounting Hardware |
Specifications sourced from official Midas documentation and authorized dealer listings.
If you're running an HD96 console and need to ensure uninterrupted audio in mission-critical live environments, the AS80 is purpose-built for the task. It is the ideal solution for large-scale touring productions requiring high channel counts with full redundancy.
The FPGA-based switching is a standout feature: unlike software-based failover that can introduce latency or dropouts, the AS80's hardware-based switching ensures seamless audio continuity even when a primary HyperMac connection fails.
For touring professionals, the dual redundant power supplies and real-time cable status monitoring provide peace of mind that the show will go on, regardless of cable or power issues.
Basic Setup: Mount the AS80 in your stage or FOH rack (1U rack space). Connect your HD96 console's Snake ports to the AS80's HyperMAC inputs using either copper (RJ45) or optical fibre cables.
Redundancy Configuration: For full redundancy, connect both Snake X and Y paths. Important: Do not mix optical and copper connections between redundant paths — use two optical or two copper connections for proper redundancy operation.
Clock Source Selection: Use the front panel "Clock source Port A" and "Clock source Port X-Y" buttons to select the clock source. The appropriate LED will light blue when selected .
Firmware Updates: Keep AS80 firmware current by downloading updates from Midas Cloud and using the updater application via the Micro USB port or through HD Series consoles.
How to Buy: Purchase the Midas AS80 directly from Midas Console USA. We offer competitive pricing and fast shipping within the United States.
Payment: We accept major credit cards, debit cards, and other secure payment methods through our encrypted checkout system.
Shipping: Fast, tracked shipping across the USA. Products are carefully packaged in protective materials to ensure safe delivery of your professional audio equipment.
Legal Considerations: The AS80 is covered by the comprehensive Midas warranty program. Purchasing from an unauthorized dealer may void warranty protection. Midas Console USA is an authorized source for genuine Midas products.
A: The AS80 is designed for HyperMAC-equipped Midas consoles, particularly the HD96 series (HD96-24, HD96-AIR. Compatibility with other brands is not guaranteed.
A: The AS80 supports up to 192 bidirectional channels at 96 kHz.
A: Yes. The AS80 features dual redundant auto-ranging universal switch-mode power supplies with independent IEC inlets.
A: Yes, the unit operates with one PSU, but redundancy is lost. The Power LED changes to purple if only one PSU is active.
A: Download updates from cloud.midasconsoles.com. Update via the Micro USB port or through HD Series consoles.
A: Use two cables of the same type — either two multi-mode optical fibre cables or two shielded Cat5e STP cables. Do not mix cable types.
A: The AS80 includes the converter unit, 2 power cables, mounting hardware (M4 and M6 screws, plastic washers, feet, rear mount brackets), and a Quick Start Guide.
As a professional-grade product, the AS80 is widely recognized in the touring and live sound industry for its reliability. Industry publications highlight its role in ensuring "uninterrupted audio" and "seamless failover" for mission-critical performances. The AS80 is commonly used alongside the HD96-24 and HD96-AIR consoles in large-format digital audio networking systems.
